Multi functional dough forming production line

Short Description:

Used for Hand tear bread, shredded pork cake/pie/bread, flaky pastry, green bean cake, wife cake, crystal cake, Su-style moon cake, bun, horse hooves cake, hamburger, jam bun, lotus seed paste bun, breakfast bread, caterpillar bread, joy luck cake (western-style pastry), toast, twist bread, butterfly bread, sesame seed cake etc.
The dough sheet will be more glossily with stable quality after rolling by 2 wheels device; Synchronous speed control function.

Send email to us

Product Detail

Product Tags

Main technical parameter

Model:	ZL—180
Capacity	1000~12000 p/h
Power:	7.5kw
Size	14650×1350×1700mm
Wheel width	110mm—300mm
Machine weight:	3000kg

Characteristic

1. Modular design for peripheral configurations and can be varied within 270 degrees.
2. Not be hot while running and not damage the dough.
3. Stable for the weight and quality of products with low deviation (less than 5g).
4. Can be changed to different production line (produce different products with different peripheral configurations).
5. Matching different cutters for variety products.
6. Specification of the product can be adjusted. The weight range is from 12g to 660g.
7. Capacity: (according to the products weight)
Twist dividing: 1000~7200p/h
Cutting: 1000~12000p/h

Main technical parameter

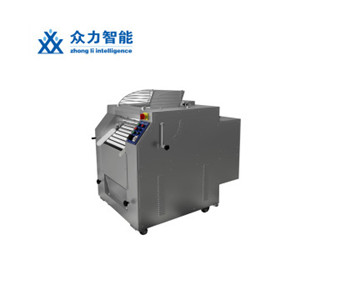

ZL-630 Automatic Dough Sheeting /kneeing machine
	CharacteristicTo make sure the toughness and gloss of the dough through S type kneading. Set up time and the times of kneading. Adjust the thickness of the dough sheet (0.8-1.8cm). Set up the powder amount through automatic powdering system. Simply and safely operating with less labor.	Main technical parameter:Power: 3.2kw/380VSize: 160011001550mm Machine weight: 640kg

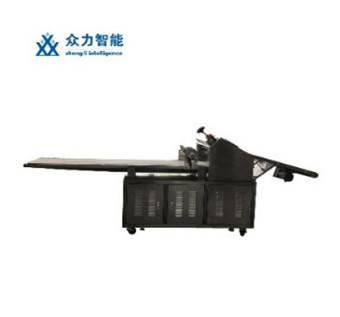

ZL-631 Dough Sheet dividing and shaping machine
	Instruction: 1: The width and thickness of dough can be adjusted 2: It connected with automatic dough sheeting machine, and make the quality of product more stable 3 : It can increase the flexible of dough and make more conveniences of Forming machine 4: Can plus more cutter for different bread	Main technical parameter:Dimension(LWH):3200x680/740x1380mm Power(W):3.0kw Voltage:380V/220V Weight:330kg Material: 304 Stainless Steel

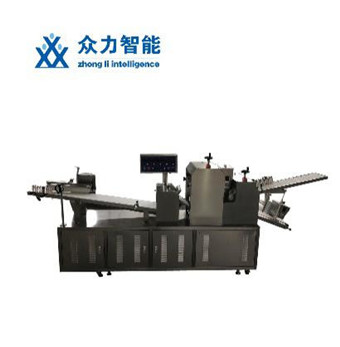

ZL-180 Multi-Functional Dough Molding Machine
	Instruction:Used for Hand tear bread, shredded pork cake /pie /bread,flaky pastry, green bean cake, wife cake, crystal cake, Su-style moon cake, steamed bun, horse hooves cake, hamburger, jam bun, lotus seed paste bun, breakfast bread, caterpillar bread, joy luck cake (western-style pastry), toast, twist bread, butterfly bread, sesame seed cake etc.The dough sheet will be more glossily with stable quality after rolling by 2 wheels device; Synchronous speed control function.	Main technical parameter: Model: ZL-180Capacity:Twist dividing:1000~7200p/h Cutting: 1000~12000p/h Finished weight:15-150g/P Power: : 5.56kw/4.5kw Size:2100×1300×1700mm Machine weight: : approx. .890kg/740kg

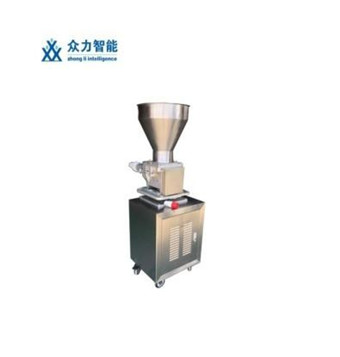

ZL-A60 Filling depositor Machine
	Instruction: 1: The filling is well stirred by 4 layers of rotary wheels Main technical parameter: 2: Filling exit have 10sizes, there are 10 types ofstuffing, suitable for different products 3: connect with pastry machine, easy operate 4: The height of the platform is adjustable and suitable for different averment. 5: depositor: Jam, chopped meat. Kind of hard &stick thick stuffing	Main technical parameter:Power: 0.75kw Size: 660x750x1460mm Machine weight:96kg

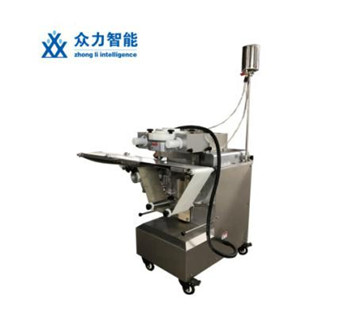

ZL-A28 Automatic Pinch Dough Machine
	Instruction: 1 : Connect with pastry machine 2: There are 3 type entrances to control the products weight 3 : the nice look made by 9circle knit to keep good sailing. 4 : It is easy to strip and clean the knife dish load that ensure cut can be on good situation 5 : Height and size can be adjusted.	Main technical parameter:Power: 2.5kwSize: 1350x780x750mm Machine weight: 210kg

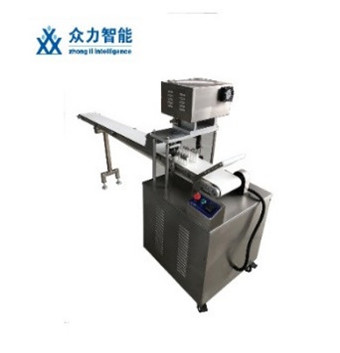

ZL-A10 Automatic Cutting machine
	Instruction: 1: Machine weigh is light 2: Can be moved to any suitable place 3: Dish load of knife can be changed by requirement 4: The size can be revised by custom asking.	Main technical parameter:Weight:150kg Dimension(LWH):2200x600x1380mm Voltage:380V/220V Power(W):1.55kw Material:304Stainless Steel

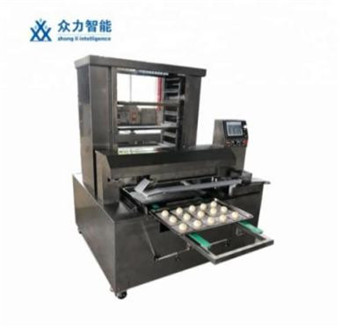

ZL-A58 type Automatic shuttle planner machine (Penner with tray feeder machine)
	Characteristic:Accurate placement, not be clamped tray, and save labor.Function: PLC control system, built-in 99 sets memory function Can be set arrangement (parallel or cross) Automatically judge and calculate arrangement and number. Professional servo system, accurate placement.	Main technical parameter:Voltage:380V/220VMaterial: 304 Stainless Steel Power(W):2.5kw Dimension(LWH):1550x1820x1680mm Weight:465kg
